技术参数：
楼承板成型机是将镀锌钢板作为原材料，经过辊压冷弯技术，冲模成型，主要用于生产钢构工程用楼承板，轧成后的楼承板其截面成类以V型、U型、梯型或这几种形状的组合，主要用以做组合楼板或混凝土楼板的永久性模板。
楼承板成型机所出的产品广泛应用于多高层钢结构建筑领域，主要用于楼层的平面，是多高层钢结构建筑领域使用最多的楼面做法。主要用于电厂、电力设备公司、汽车展厅、钢结构厂房、水泥库房、钢结构办公室、机场候机楼、火车站、体育场馆、音乐厅、大剧院、大型超市、物流中心、奥运场馆体育场馆等钢结构建筑。
技术参数
轧制速度：约8-12m/min
原料厚度：1.0-1.2mm
材质：常规镀锌板
原料宽度：1080mm
综合成型辊：36道
主轴直径：φ85mm
主机功率：11kw×2台
减速机：摆线针轮电机减速机
液压切断：3千瓦
控制系统：PLC自动控制系统
外形尺寸：约20m*1.6m*1.7m
主机重量：约20T

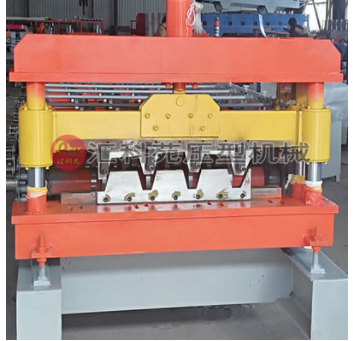

产品实拍图
产品细节图示例
产品版型图
运输包装示例
我们的产品
企业介绍
泊头市汇科苑工业控制有限责任公司，数年来全心致力于金属板冷弯辊压成型机的研发和制造。产品因结构轻巧，设计合理，不断更新而备受钢结构行业的青睐。
我们的客户
购买须知
-
1、厂家货源正品
厂家独立开发自行研制产品。
-
2、关于型号
我们可以根据你的需求，订制及提供各种不同规格的型号的产品。
-
4、关于客服
我们会按照合同约定发货。
-
5、关于售后
所售出的设备均保修一年，在保修期内如出现由产品制造质量引起的问题工厂包修；对由于其它原因造成的问题，工厂积极协助用户解决问题，以保证产品及时投运，把事故损失降低到较低程度。
-
6、终身服务
终身服务：在任何时间，如有设备故障，我公司可派人前往，维修零配件和其他服务项目不高于市场价，以成本价提供。
联系方式：
联系人：杨经理
手 机：15612755608
地 址：河北沧州泊头市付庄开发区
网 址：http://www.hbhuikeyuan.com
