现发现货供应双层压瓦机,彩钢瓦设备,琉璃瓦机, C型成型机
2019-11-07 13:52  浏览:267
价格:￥86000.00/台
起订:2台
发货:3天内
 3
ntext="{"pageType":"offerdetail","siteKey":"3d67ede101914f40b4629fc6dc15e376","siteId":"winport","isTopDomain":false,"templateKey":"skin:winport:skin116","login":false,"diy":false,"uid":"btxianfa"}" data-view-config="{"fragmentUrl":"https://apps.1688.com/fragment/offerdetail.htm?_server_name=btxianfa.1688.com","spm":"7663282","feature":"WP_PAGE_OD_AVAILABLE","showTitle":true,"eventUrl":"https://apps.1688.com","type":"system","domainUrl":"btxianfa.1688.com"}" data-edit-config="{"lastModified":1550613019036,"ruleConfig":{"appMaxCount":50,"editable":true,"movable":true,"hideable":true,"isDesignable":true},"segmentConfig":{"ruleConfig":{"id":{"site_content":{"switchable":false}}}},"regionConfig":{"smallAllowAppend":true}}" class="page-offerdetail page-content-sub" style="background: none;">
nfig="{"appVersion":"1.0.0","appType":"default","appName":"offerDetailContext2"}" data-view-config="{"feature":"WP_WIDGET_OFFER_DETAIL","showTitle":false,"showResult":false}" data-spm="autotrace-offerDetailContext2" data-exposure="autotrace-offerDetailContext2" style="margin-bottom: 8px;">
nfig="{}">
nfig="{"name":"region-detail-feature","direction":"vertical"}">
nfig="{"showOn":["mod-detail-description"],"title":"详细信息","tabConfig":{"trace":"tabdetail","showKey":"mod-detail-description"} ,"catalog":[{"contentUrl":"https://img.alicdn.com/tfscom/TB1dsvSNFXXXXc6XFXXXXXXXXXX","id":"0","title":"图文详情"}] }" data-spm="descBanner" ready-to-show="true" style="margin-bottom: 22px; overflow: hidden; position: relative; width: auto !important;">

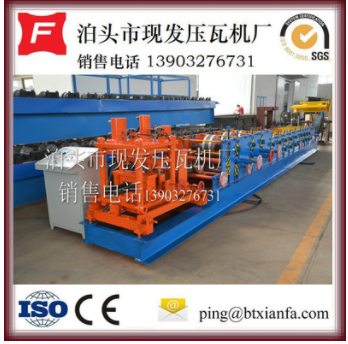

C型钢机

经该机辊轧的C型檩条成品具有良好的抗弯抗压性能，平直度好、全自动定长切割、自动冲孔、自动化程度高，安装快捷方便。

产品可作为大中型工业民用建筑的主体受力结构，如厂房、 仓库、机车库、飞机库、展览馆、影剧院、体育场馆、集市花棚的屋面承重荷载和墙面支撑



开卷机，成型主机,电控系统,液压系统,液压切刀,出料架
1. 技术参数
1> 手动内张紧开卷机
a. 装卷内径:500mm-508mm
b. 最大装卷宽度:1000-1250mm
c. 最大装载重量：3500kg
2> 成型主机
a. 辊轮排数:13排
b. 主轴材质45#钢调制处理(外径80mm)
c. 主电机功率:11KW
d. 生产速度:0-15m/min
e. 轧辊表面镀硬铬厚度0.05mm

f.适用原材料宽度:(可根据客户要求特殊定做)
3> 液压切刀
a. 刀片材料:Cr12淬火处理60-62℃
b. 切断系统:采用先进的液压驱动，成型后自动尺切断，不变形，无废料，安全系数较高（主机停切断)
4> 电控系统
a.屏显:采用文本屏显示
b.主机计算机（PLC）采用:欧瑞(可根据客户要求特殊定做)
5> 液压系统
a. 功率:7.5KW

Channel Roll Forming Machine

Purlin Roll Forming Machine

37_副本


undefined

undefined

undefined
泊头市现压瓦机厂

目前我们的产品已经出口到世界上90多个国家和地区,并且与客户保着着良好的合作。我们坚信技术创新并且做好每个细节是我们永远的追求

Corrugated Wall Panel Machine
证书和生产流程

Roll forming machine

1

2
说明：标题名称型号繁多，不能一一填写价格，单价只是标价，具体规格型号单价请咨询客服，谢谢！！！
